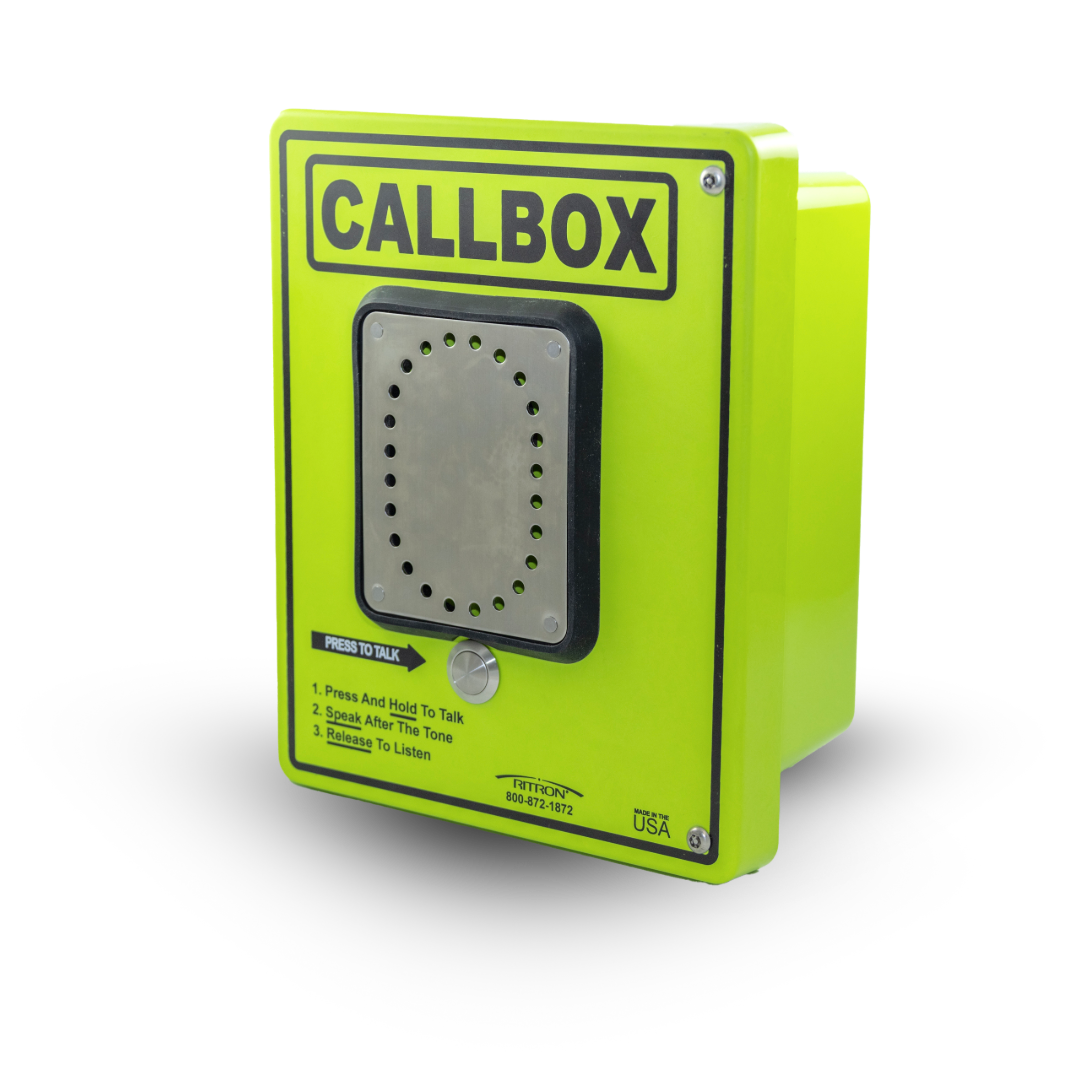

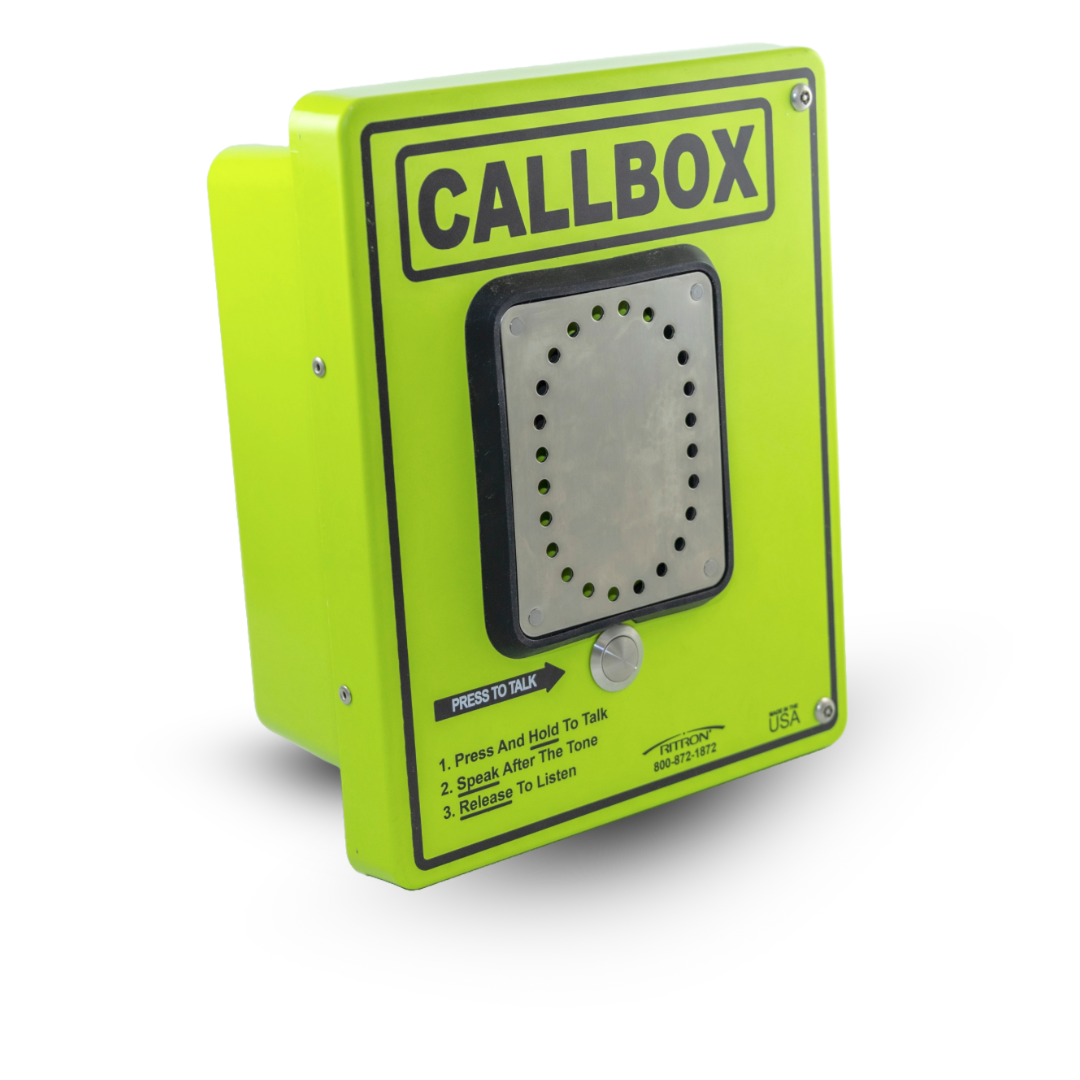

Two Way Radio Callboxes

    Ritron’s battery-operated callboxes provide crisp, clear, long-range voice communication with your existing two-way radio network. Place the compact and durable callbox virtually anywhere to maximize manpower efficiency, improve safety, and decrease response times. Put communication exactly where you need it!

    • Wireless, 2-Way, Push-to-Talk, Narrowband, Analog Technology
    • Improved Range Performance
    • 800mWatt (if using Battery), 2 Watt Transmit Power (if using external power supply)
    • Loud, Easy-To-Hear Audio Output (Adjustable)
    • Rugged, Fiberglass Reinforced Enclosure, Vandal-Resistant
    • Weatherproof, Gasket-Sealed

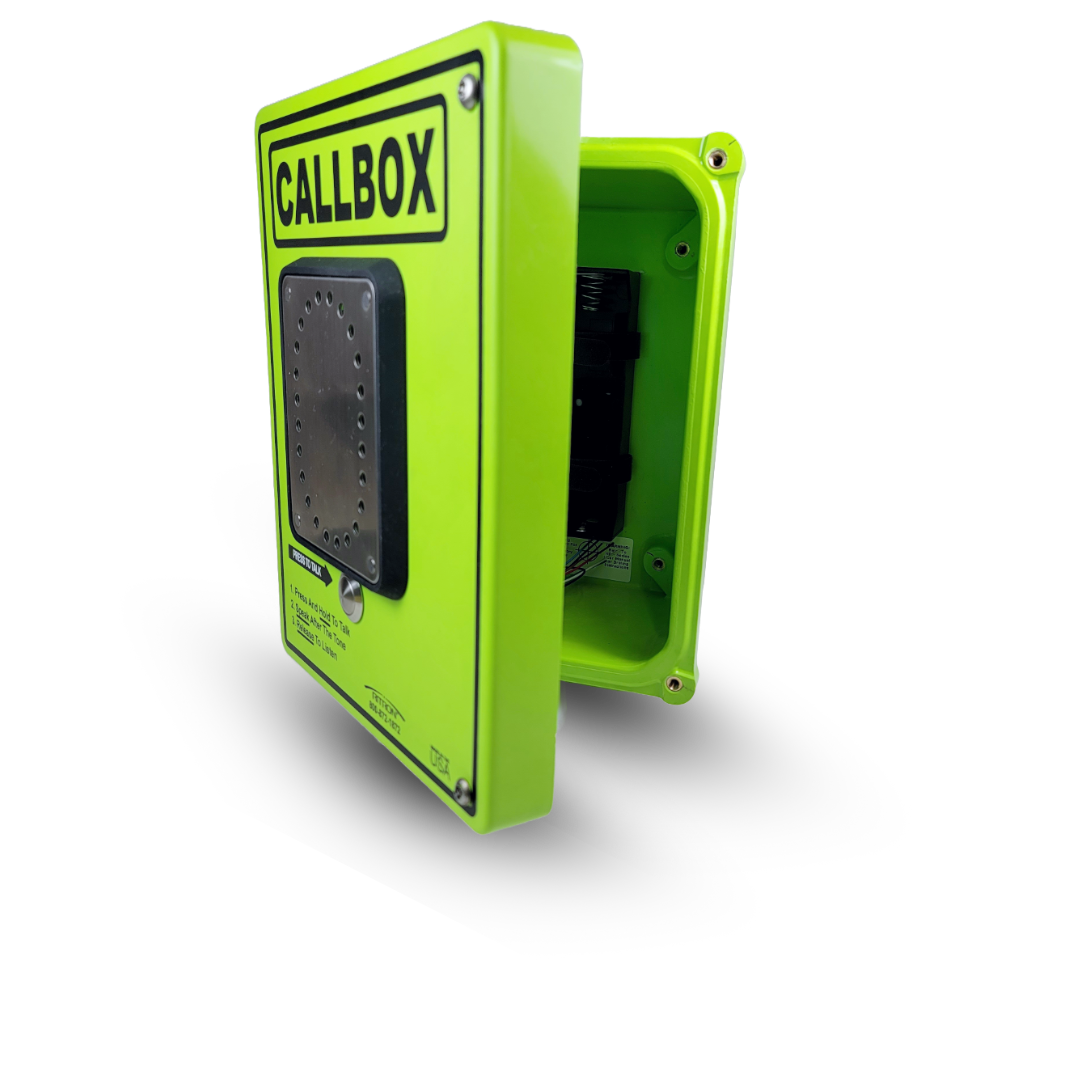

    • Hinged Door w/ Captive Security Fasteners
    • Built-In Antenna, Provision For External Antenna If Needed
    • Built-In Relay For Remote Access Control (Gate Controllers) or Strobe Light Accessory
    • Recordable Voice Messages (Greeting, Alert, Low Battery, Power Fail Message)
    • Sensor Input (Open/Close) w/ Recordable Voice Message, Auto-Transmit On Sensor Detect
    • Alkaline Battery Powered (Auto Turn-Off) or Externally Powered For Always-On w/ Optional AC Adaptor (pn RPS-EXPO)

    Accessories

    • RQX-HDMK – Optional Post/Wall or Gooseneck Mounting Bracket
    • RAM-1545 – UHF/VHF, Dual band, magnetic mount antenna, unity gain, 25 feet of cable, BNC connector
    • RAM-45 – UHF Magnetic mount antenna, unity gain, 12 feet of cable, BNC connector
    • R-Strobe-DC – Blue Strobe Light.
    • RPS-EXPO – External power supply cube, rated for indoor use only, 110VAC to 12VDC.
    • Solar Power Kit – Includes: 10 Watt solar panel, Sealed lead acid battery, charge controller and NEMA housing.
      • Dimensions: Solar Panel 16.4”H x 10.6”W x 0.9”D.
      • Enclosure 12”H x 10.25”W x 6.25” D. Weight: 10lbs.
      • Mounts to flat surface.
