Testing and Compliance for Public Safety Bi-Directional Amplifiers (BDAs)

Bi-Directional Amplifiers (BDAs) used for public safety communications must meet strict testing and compliance requirements to ensure that first responders have reliable, code-mandated radio coverage inside buildings. These requirements are driven by national fire codes, local Authority Having Jurisdiction (AHJ standards, and FCC rules governing radio equipment. Proper testing verifies that the system performs as intended, does not interfere with the broader radio network, and remains operational during an emergency.
‍

1. Code Requirements and Standards

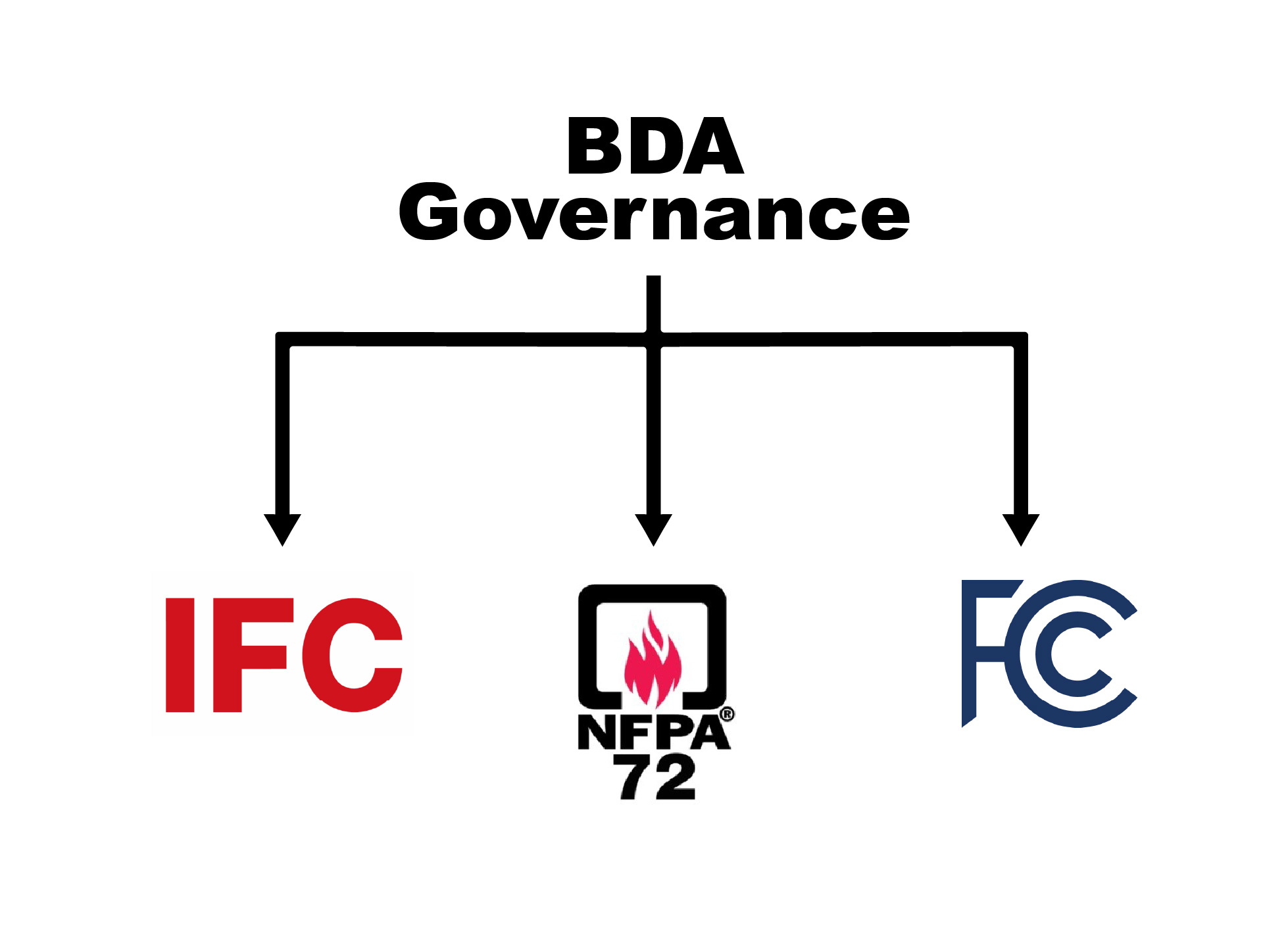

Public safety BDAs are governed primarily by:
NFPA 72 (National Fire Alarm and Signaling Code)IFC 510 (International Fire Code -Emergency Responder Radio Coverage)FCC Part 90 (Rules for public safety radio equipment)

NFPA 72 (National Fire Alarm and Signaling Code)
IFC 510 (International Fire Code -Emergency Responder Radio Coverage)
FCC Part 90 (Rules for public safety radio equipment)

These codes outline minimum performance levels, survivability requirements, and ongoing testing intervals. Local AHJs may add additional criteria such as specific signal thresholds, battery backup durations, or approved equipment lists.

2. Acceptance Testing (Initial Commissioning)

Before a system can be approved for use, it must undergo a full acceptance test. This includes:

Grid Testing: The building is divided into test grids (typically 20-40 ft). Each grid must meet minimum signal strength and intelligibility requirements (e.g., DAQ 3.0 or better).
Uplink and Downlink Verification: Ensures the BDA improves both inbound and outbound radio signals without causing oscillation or interference.
Antenna and Cable Testing: Coax, fiber, and antennas are tested for proper installation, continuity, and isolation.
Battery Backup and Power Testing: Verifies that the system can operate during power loss for the duration required by code (often 12-24 hours.
Alarm and Monitoring Validation: Confirms that all supervisory alarms (faults, power, battery, oscillation) report correctly to the fire alarm panel or monitoring system.

A full test report—including heatmaps, grid results, and equipment documentation—is submitted to the AHJ for approval.

3. Annual and Periodic Testing

Public safety BAs require ongoing testing to ensure continued compliance:

Annual Inspection: Verifies system health, alarm functions, battery condition, and amplifier performance.
Five-Year Grid Test: Many jurisdictions require a full or partial re-test of the building's radio coverage every five years.
Firmware and Configuration Review: Ensures the system remains aligned with any changes to the public safety radio network.

These periodic tests help identify degradation due to building changes, new construction, or system aging.

4. FCC Compliance and Interference Prevention

Because BDAs operate on licensed public safety frequencies, they must comply with FCC regulations:

No Unauthorized Amplification: Only frequencies authorized by the AHJ may be amplified.
Oscillation Prevention: Systems must be tested to ensure they do not create harmful interference to the public safety radio network.
Proper Labeling and Registration: Many jurisdictions require BDA registration with the radio system administrator.
